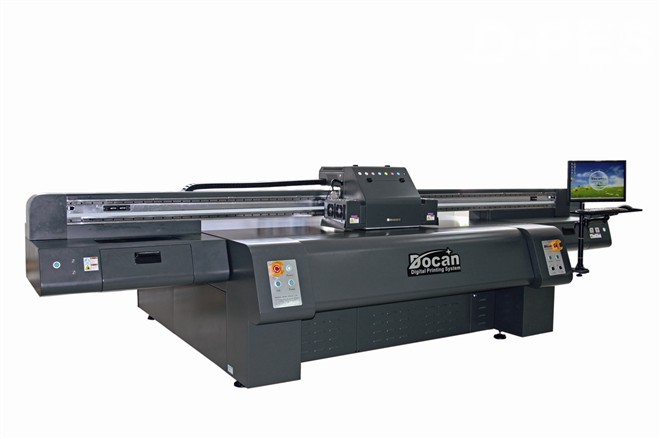

Product Name:M10 Flatbed UV printer machine

Product Details:
Model:
M10
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
SHANGHAI
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
1000 Set/Sets per Year
Delivery Time:
25 working days
Packaging:
STANDAD PACKING

Detailed Product Description:

V printer using uv lamp to dry and fix the ink on the material surface,environment protection



UV Printer Model

DOCAN1525

DOCAN2518

DOCAN2030

Printhead Type

JAPAN Konica-1024-14PL / Konica-512-42PL

  Nozzle Number

4, 5,6,7,8,10,12,15,16

4, 5,6,7,8,10,12,15,16

4, 5,6,7, 8,10,12,1416

  Printing Colors

C,M,Y,K,LC,LM,W

C,M,Y,K,LC,LM,W

C,M,Y,K,LC,LM,W

Print Width

  1.5m x 2.5m                  2.44m x1.8m                      2m x 3m

Media Width

           1.5m x 2.5m                   2.44m x 1.8m                     2m x 3m

Print speed

Print mode

4 heads

        8 heads

16 heads

High

720x1440 8pass 9m2/h

720x1440 8pass 17m2/h

720x1440 8pass 30m2/h

Middle

720x1080 8pass 11m2/h

720x1080 8pass 20m2/h

720x1080 8pass 45m2/h

Normal

720x720 8pass 15m2/h

720x720 8pass 28m2/h

720x720 8pass 60m2/h

Standard speed

360x1440 8pass 18m2/h

360x1440 8pass31m2/h

360x1440 8pass 63m2/h

Ink

Ink Type

UK Sunjet or Japan Toyo (UV ink)

Colors

C,M,Y,K,LC,LM,W,F

C,M,Y,K,LC,LM,W,F

C,M,Y,K,LC,LM,W,F

Printing Height

Max 10cm

Media Thickness

5cm

RIP software

PhotoPrint6.0

Interface

USB Fiber

Printing system

Printing Materials

leather,pp,wall paper,glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sh, pvc foam board, Plexiglas, foam board, packaging paper, canvas,mdf,crystal,marble, etc

Head

controls

Printhead temperature and voltage are software adjustable(docan control)

Printing pictures

Outdoor 3 years, Indoor 5 years

Printer info

Power

                        50/60Hz 220 V(10%) 16 A

Working environment

(Temp) 20oC--28oC, Humidity 40%--60%

Dimensions

3500x1700x1300mm  4185x2420x1333mm  3890x3634x1300mm

Weight

           1100kg               1250kg                 1450kg
